Double Electrical UK Mains Plug Socket 2 Gang & 2x USB Ports
Power Leads & Adaptors > External
Instructions
Firstly, ensure you isolate the mains power supply and remove the fuse in the fuse box or switch off the circuit breaker in the consumer unit.

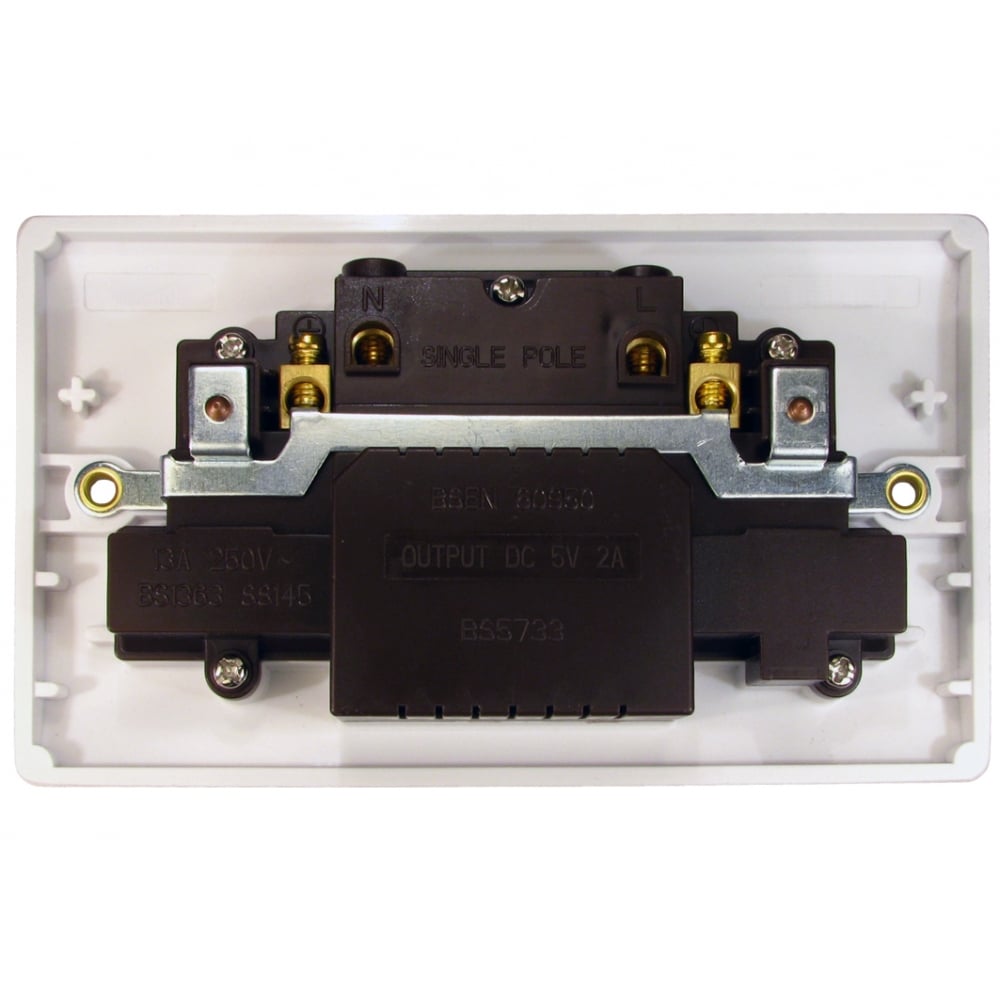

Following the diagram over-leaf pass the cable through the entry holes and connect to the appropriate terminal.
If an Earth loop connection is required, use the additional earth terminal block located in the back box.
Re-connect the mains supply when the installation is correctly completed.
Before use we recommend that a socket test is carried out.
DO NOT MEGGER TEST – this will damage the USB charging circuit.
£14.99
This device must be installed by a competent person, in accordance with the current edition of the IET Wiring Regulations (BS7671) & Building Regulations.
Please read these instructions carefully before commencing with installation. Failure to install correctly will negate the product warranty.
The Dual Power Socket with Dual USB Outlet allows you to charge / power 2x USB devices and 2 other electrical items from one double wall plate.
The USB charging sockets are compatible with items such as smart phones, tablets and other devices that require charging via a USB port. The USB charging sockets have a total output of 2 amps (combined); if the current exceeds this it will automatically shut down to protect your device.
This dual switched socket will fit any standard dual 25mm deep wall box.
